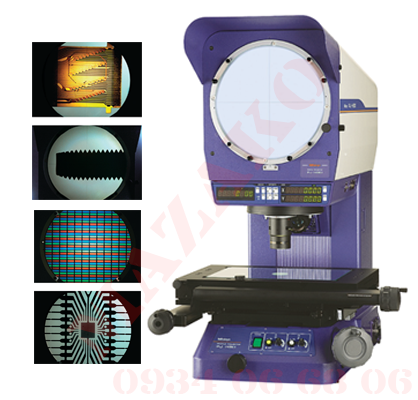

Máy chiếu biên dạng, PJ-H30, Series 303

Máy chiếu biên dạng, PJ-H30, Series 303

Tải về

Thông tin sản phẩm

Protractor screen

Model máy

PJ-H30A1010B

PJ-H30A2010B

PJ-H30A2017B

PJ-H30A3017B

Mã đặt hàng

303-712-1

303-713-1

303-714-1

303-715-1

Protractor screen, OPTOEYE(built-in)
Electromotive focusing

Model máy

PJ-H30D1010B

PJ-H30D2010B

PJ-H30D2017B

PJ-H30D3017B

Mã đặt hàng

303-732-1

303-733-1

303-734-1

303-735-1

Measuring range (XxY)



100x100mm

200x100mm

200x170mm

300x170mm

Resolution for X/Y counter



0.001mm/.0001”

Measuring accuracy



(3+0.02L)µm,       L: Measured Length (mm)

Projected image



Erect

Protractor screen

Effective diameter

Ø306mm (12'')

Screen material

Fine-ground glass

Screen rotation

±360° (±370° for display)

Angle display

Digital counter (LED) (ABS/INC mode switching, Zero Set)

Resolution

1' or 0.01° (switchable)

Mechanism

Fine feed and clamp

Cross-hairs

90° (solid lines)

Proiection lens

Magnification

10X (standard accessory), 5X, 20X, 50X, 100X

All lens have the same focus. Half-mirror for the coaxial surface illumination are built-in and movable.

Lens mount

Bayonet mount, 3-lens mount turret type

Magnification accuracy

Transmitted illumination

Less than ±0.1% of nominal magnification

Surface illumination

Less than ±0.15% of nominal magnification

Illumination

Transmitted illumination

Halogen bulb (24V, 150W, 50hours) (No.515530)

Variable Illumination angle (Coaxial surface/Oblique reflected, Beam concentration and adjustment), Built-in heat-absorbing filter, Built-in cooling fan, Stepless brightness adjustment, Soft lighting (inrush current reduction)

Surface illumination

Halogen bulb (24V, 150W, 50hours) (No.515530)

Zoom Telecentric system, Heat absorbing filter, Built-in cooling fan, Stepless brightness adjustment, Soft lighting (inrush current reduction), Bulb sliding mechanism
